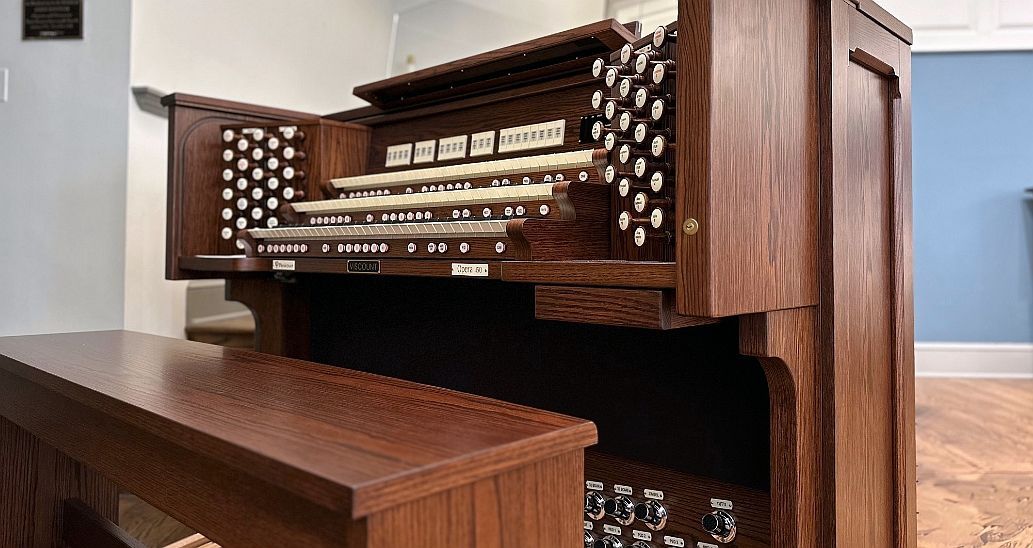

Vanguard 363DK Description
The Vanguard 363 is a three-manual American Classic organ with two 32′ stops powered by Viscount’s advanced Physis®Plus platform. The elegant 3-manual drawknob console is equipped with a USB-capable combination system with up to 9,000 memory levels, an expandable audio array with up to 32 channels, realistic Stop Routing, and editor support for Windows, Mac, and iPad. Optional DANTE® (Digital Audio Network Through Ethernet) integration is available for digital audio networking.
Vanguard 363DK Features
- 3 Manual (Tracker Touch)
- Swell Expression and Crescendo Shoes
- 53 Organ stops + 8 Orchestral: Pedal (12), Manual I (11), Manual II (14), Manual III (16)
- 14 Couplers
- 1000 Memory Locations, 9 Memory Banks, Total 9000 Memories
- Piston Sequencer
- Two Tremulants
- Reverb: 16 Presets
Vanguard 363DK Voices
Pedal: 12 voices, I/8, II/8, III/8, III/4
Manual I: 11 voices, Tremulant, I/16, III/16, III/8, III/4
Manual II: 14 voices ,Tremulant, III/16, III/8, III/4, I/8
Manual III: 16 voices, Tremulant, III/16, III/8 Off, III/4
Physis Voice Library (organ): 700 and growing
Physis Voice Library (orchestral): 30 and growing
Voicing Styles: Northern Baroque, French Romantic, English Cathedral, American Symphonic, and more
Please see brochure for stop list.
Vanguard 363DK Dimensions/Cabinet
Height (excluding music desk): 127 cm - 50”
Height (including music desk): 151.5 cm - 59.6”
Width: 164.1 cm - 64.6”
Depth (excluding pedal board): 70.5 cm - 27.7”
Depth (including pedal board): 111.2 cm - 43.7”
Weight: 195 Kg - 430 LBs
Dark oak, light oak
Vanguard 363DK Connections and Audio
MIDI In / Out
Aux In / Out
Headphones
USB
Optional up to 28 stereo outputs
Channel Assignments: Subwoofer, left, and right
Equalizer standard
Amplitude adjustment
Room modeling
Ambient reverberation
